3D Transport & Fate Model

See where a spill goes before it happens.

STFM simulates how oil and other contaminants move through water — from the first meters of a near-field release to far-field dispersion across currents, wind, and tides.

Developed at the University of São Paulo

Lagrangian dynamics
Oil particles

Follow the dispersion of a release.

Conceptual visualization with synthetic particles. This is not an STFM simulation.

  • 3DSurface and subsurface transport
  • LagrangianThe history of each particle
  • EnsemblesFrom trajectories to risk distributions
  • Published scienceTraceable methods and applications

The SisMOM platform

From configuration to interpretation

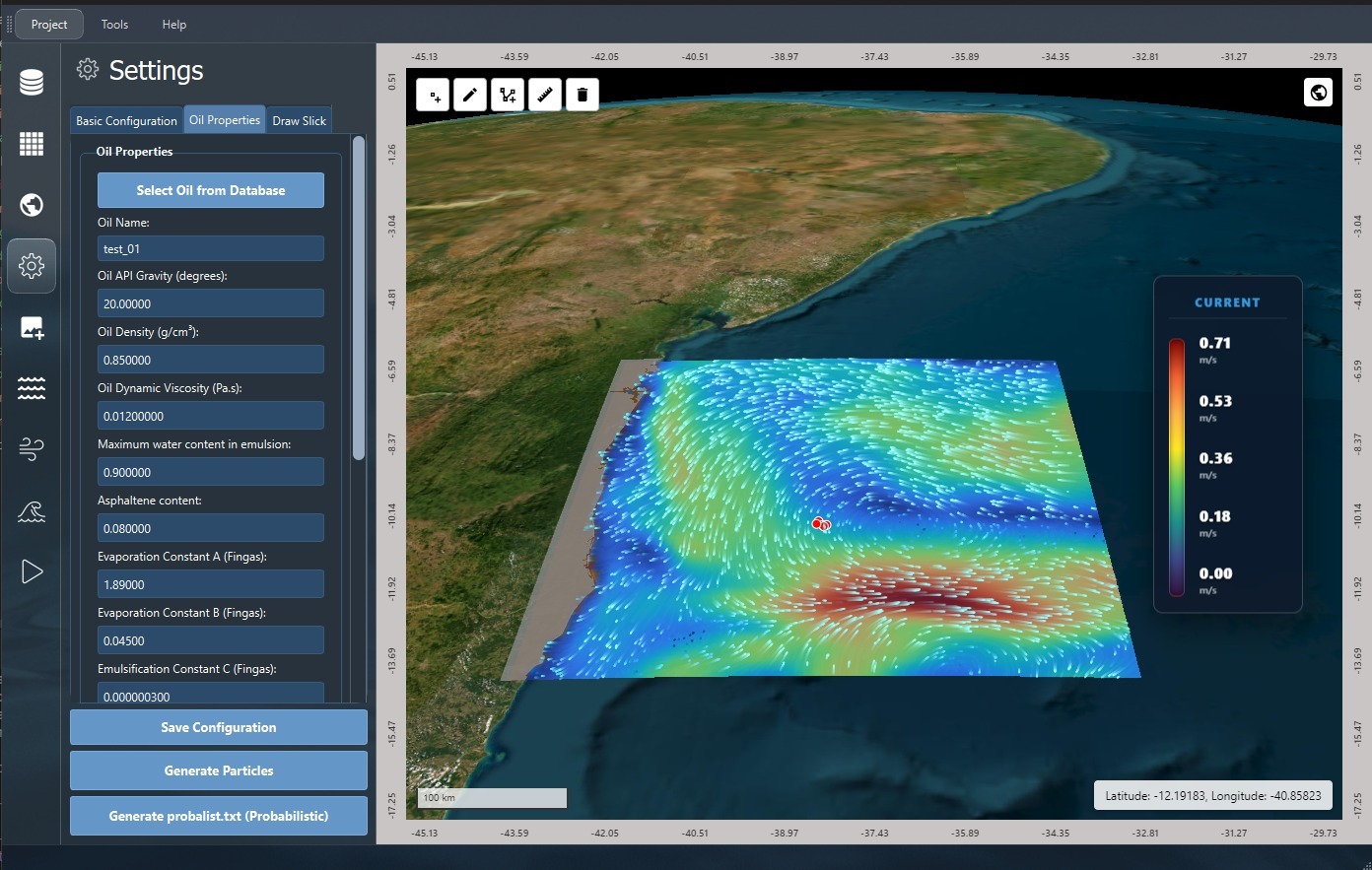

SisMOM is the desktop application for running STFM. The viewer brings together environmental fields, trajectories and weathering indicators in a visual workflow.

STFM Viewer / SisMOM

Trajectories

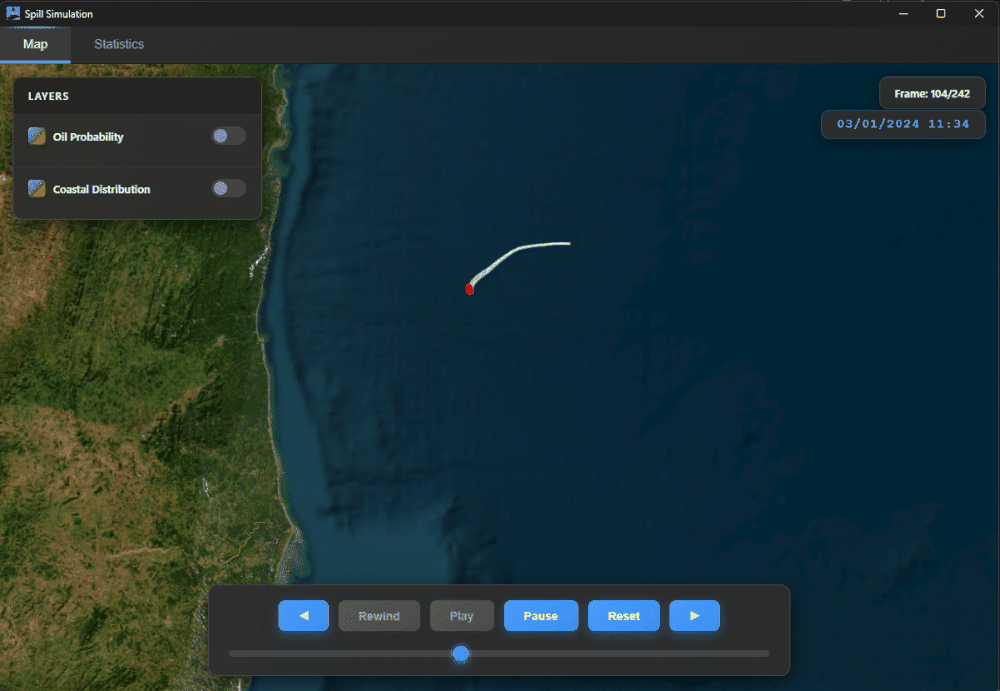

Animated oil slick trajectory drifting across the ocean surface in the STFM Viewer
Particle trajectories and the spatial evolution of a spill.

Mass balance

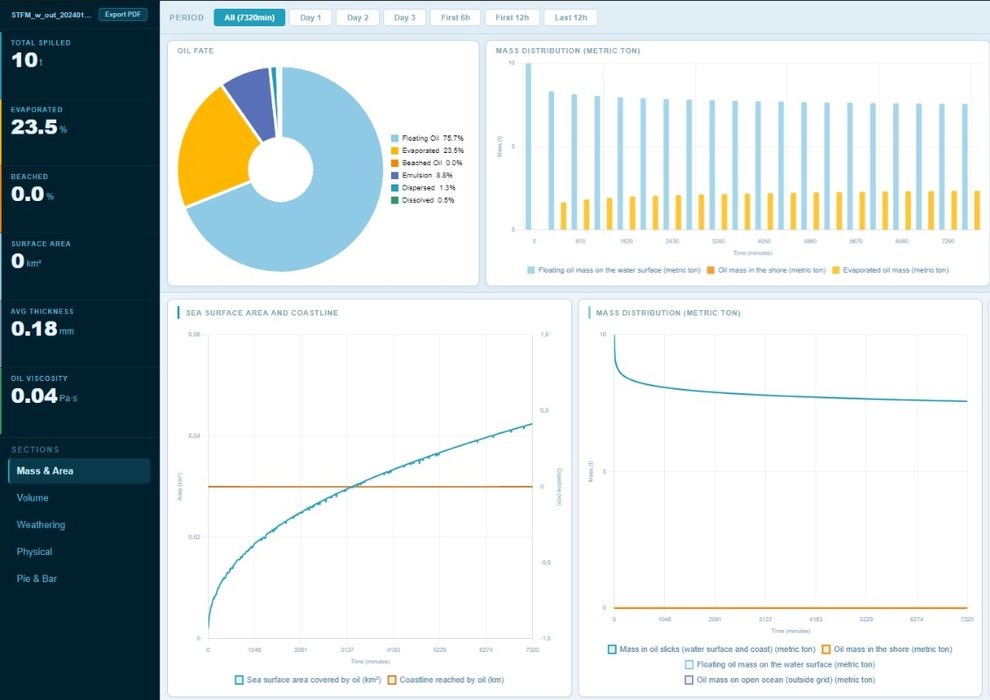

STFM weathering dashboard showing oil fate, mass distribution, and coastal impact charts
Mass distribution, area evolution and oil fate.

Current fields

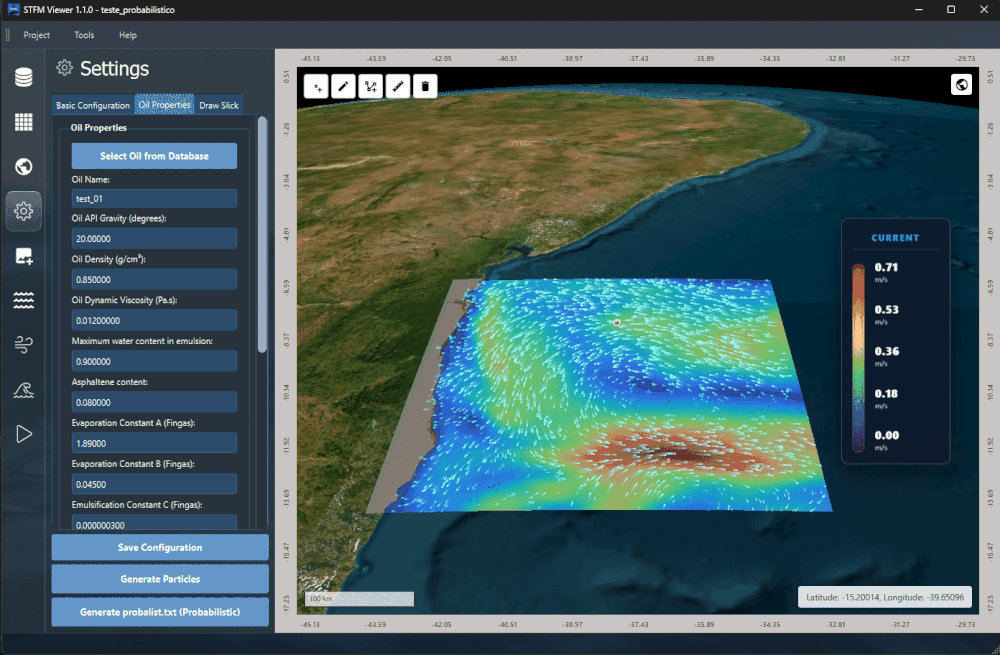

Animated ocean current field over the simulation grid in the STFM Viewer
Current fields evolving across the simulation grid in the viewer.

Actual software images.

  1. Configure

    Define the domain, oil and release conditions.

  2. Simulate

    Combine forcing data with the scenario of interest.

  3. Interpret

    Explore trajectories, maps and mass balance.

Desktop application · SisMOM

Explore the software

Check the official page for requirements, version and installer availability. Tutorials introduce the configuration workflow.

How the model thinks

One release, three ways to ask the question

The same physics answers different questions. Pick a mode to see, in a simplified setting, what each one produces.

One event, one trajectory. Particles are released at the source and carried by currents and wind, with a random-walk component for turbulence. Dots that reach the coast are marked as beached.

Conceptual visualization with synthetic particles. Not output from the model.

How each mode works

The Model

Two scales, one model

Most transport models are tuned for one regime. STFM moves between both, so the same release can be followed from the outfall to the open coast.

Near‑Field

Initial dilution

Captures the turbulence and buoyancy that dominate close to a release, where jet and plume behavior set the starting condition for everything downstream.

Learn More
Far‑Field

Extended trajectory

Tracks advection and dispersion outward across hours to days, driven by ambient currents, wind, and tidal forcing rather than the source itself.

Learn More
Method

Published methodology

Built on peer-reviewed Lagrangian particle-tracking methods, developed and tested against academic research at the University of São Paulo.

Learn More

Processes

An oil slick. A system of processes.

The Spill, Transport and Fate Model represents oil through Lagrangian elements. Each particle evolves through space and time, with its own properties and mass balance.

The ocean moves. Physics transforms.

Currents, wind and waves drive transport. Oil properties and environmental conditions influence spreading and weathering.

Transport

  1. Advection

    Currents, wind drag and Stokes drift contribute to displacement.

  2. Turbulent diffusion

    Stochastic motion represents dispersion at unresolved scales.

  3. Spreading

    Gravity, buoyancy and viscosity govern early slick expansion.

Weathering

  1. Evaporation

    Volatile fractions are lost to the atmosphere over time.

  2. Emulsification

    Water incorporation changes volume, density and viscosity.

  3. Dissolution

    Soluble compounds transfer into the water column.

Fate

  1. Vertical dispersion

    Wave action can entrain droplets into the water column.

  2. Buoyancy and sedimentation

    Oil and water properties influence transport at depth.

  3. Shoreline interaction

    Coastal contact supports assessment of exposure and oil arrival.

Environmental data

A model connected to its environment.

  • Ocean currents

    Hydrodynamic fields, including HYCOM.

  • Wind and atmosphere

    Meteorological forcing, including GFS.

  • Waves

    Stokes drift, used with ERA5 data in a published study.

  • Oil and release

    Physical and chemical properties, location, volume and event duration.

The workflow

From an empty project to a result in seven steps

Every screen below is SisMOM itself. Pick a step to see what you do and what the software shows.

New project window in SisMOM

Step 1 of 7

Create a project

Name the project and choose a folder. SisMOM builds the structure for you: raw data, converted currents, winds and waves, grids, saved settings and outputs.

Step by step in the guide
Computational grid generated over the coast in SisMOM

Step 2 of 7

Define the grid

Set the center, the number of cells and the cell size, preview it on the map, then generate. The grid is clipped to the coastline automatically.

Step by step in the guide
SisMOM Downloader main screen

Step 3 of 7

Download the forcings

The Downloader fetches ocean currents (HYCOM), winds (GFS) and waves (Copernicus Marine) for your period and saves them inside the project.

Step by step in the guide
SisMOM Converter screen

Step 4 of 7

Convert to your grid

The Converter clips and reformats the raw data to the area and resolution of your grid, so it is ready for the simulation.

Step by step in the guide
Oil particles distributed on the map in SisMOM

Step 5 of 7

Place the spill

Mark the release point, draw the observed slick as a polygon if you have one, and distribute the particles inside it.

Step by step in the guide
Run panel with the file checklist in SisMOM

Step 6 of 7

Check and run

A checklist confirms that every required file is present. Generate the timestamp file and press Run.

Step by step in the guide
SisMOM results viewer

Step 7 of 7

Explore the results

Play the simulation frame by frame and switch layers such as oil probability and coastal distribution.

Step by step in the guide

New to oil spill modeling? Start with how oil moves and weathers at sea, or go straight to the full Getting Started guide.

Evidence

Tested at basin scale

A peer-reviewed study used STFM to assess the risk of oil reaching the coast across Brazil's Foz do Amazonas basin.

47,500 probabilistic simulations, 500 at each release site
95 drilling sites selected within the basin
30 days: the window used to assess whether oil reaches the coast

Configuration of this study, not software limits. Forcing: HYCOM, GFS and ERA5 Stokes drift.

Source: Zacharias et al. (2026), Journal of Marine Science and Engineering 14(1), 40 · DOI 10.3390/jmse14010040.

Research

Credibility you can explore.

An accessible scientific foundation: development, evaluation and applications documented in journals and the University of São Paulo repository.

  1. 2026

    Journal of Marine Science and Engineering

    Oil Spill Trajectories and Beaching Risk in Brazil's New Offshore Frontier

    Zacharias et al. · 14(1), 40

    Probabilistic application and evaluation against drifters.

  2. 2022

    Revista Ambiente & Água

    Spill, Transport and Fate Model (STFM): Development and Validation

    Zacharias & Fornaro · 17(1), e2789

    Model formulation and performance evaluation.

  3. 2021

    Marine Pollution Bulletin

    Mysterious oil spill on the Brazilian coast – Part 2: A probabilistic approach to fill gaps of uncertainties

    Zacharias et al. · 173, 113085

    Investigation of scenarios and event uncertainties.

  4. 2017

    Theses and Dissertations Repository · USP

    Development of STFM

    Daniel Constantino Zacharias · Doctoral thesis · In Portuguese

    Foundations of oil slick transport and degradation.

Results depend on forcing quality and configuration. Published evaluations refer to the scenarios and metrics of each study.

All publications

Applications

Built for real decisions

STFM output is meant to be read by people who have to act on it — responders, licensing teams, and researchers alike.

Oil Spill Response

Trajectory forecasts to guide containment and cleanup decisions in the field.

  • Trajectories
  • Exposure areas
Learn More

Environmental Licensing

Supporting evidence for impact assessments and regulatory submissions.

  • Scenarios
  • Probabilistic assessment
Learn More

Coastal Risk Assessment

Mapping exposure around ports, terminals, and coastal infrastructure.

  • Coastal risk
  • Seasonality
Learn More

Research & Education

A working platform for studying transport and fate processes in water.

  • Methods
  • Uncertainty
  • Validation
Learn More

Frequently asked questions

Before your first simulation.

See all questions

Are STFM and SisMOM the same thing?

STFM is the oil spill transport and fate model. SisMOM is the desktop application used to configure and run simulations, with tools for visualizing results.

What data are required?

Configuration depends on the study. It generally includes currents, wind, oil properties, release location and duration; wave and vertical data matter according to the processes considered.

How do trajectories differ from risk?

A deterministic simulation describes one scenario. An ensemble combines realizations to assess variability and exposure probability, conditional on the sampling and assumptions used.

Can the model be applied outside Brazil?

The physical processes are not country-specific. Application elsewhere requires suitable forcing and geographic data, together with assessment of configuration and local performance.

How can I access the software or propose collaboration?

Use the official SisMOM access page to check availability. For specific applications, validation or joint research, contact the team.

Collaborate

Work with the team behind STFM

STFM grows through use. If you have a question, a dataset or a scenario that could put the model to the test, we would like to hear from you.

Research

Joint research

Co-develop studies on the transport and fate of oil and other contaminants, from method development to regional risk assessments.

Get in touch
Comparison

Model intercomparison

Run STFM and other oil spill models on shared scenarios and datasets, and compare how each one represents the same event.

Get in touch
Practice

Environmental applications

Set up STFM for a port, terminal, basin or response plan, and discuss how to read the results with qualified professionals.

Get in touch

Scientific development

Daniel Constantino Zacharias

danizach@stfm-model.com.br

Contact Daniel Zacharias

Tell us about your institution, region of interest and study objectives.

Get Started

Run your first simulation

Follow the guide to set up SisMOM, or jump straight to the download.
